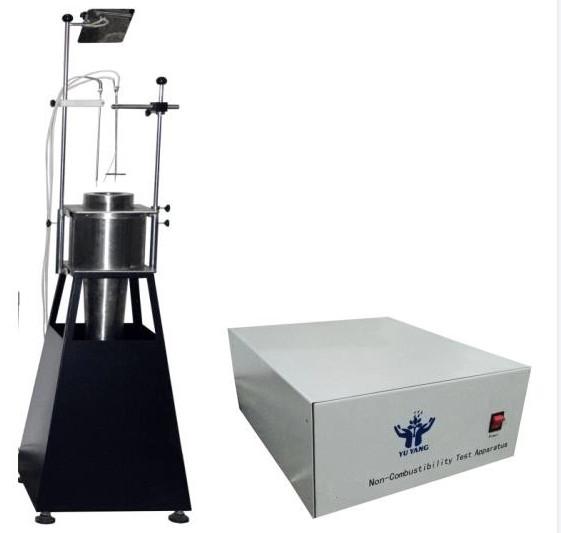

ISO1182 Non Combustibility Building Material Fire Tester Non Flammability Test With Micro-Computer
Building Material Fire Tester Suitable for determining whether the building materials flammability test under specified conditions.
Micro-control Building Material Non-Combustibility Testing Equipment meets the test standards of GB/T5464-2010 "Testing methods for non-combustibility of building materials", and ISO1182:2002 "Fire response test of building materials - non-flammability test” to determine whether the building material is non-flammable under the specified conditions.
Building Material Fire Tester Standards:
EN ISO 1182 Reaction to fire tests for building products -- Non-combustibility test
GB/T 5464 Test Methods for building materials non-combustibility
Building Material Fire Tester Specification:
1. Test apparatus containing furnace, specimen holder, draught shield, thermocouples, voltage stabilizer, variable transformer, power controller, and temperature indicator.
2. Furnace: Φ95mm×Φ75mm×Φ150mm, 80/20 nickel/chromium electrical resistance tape 3mm wide and 0.2mm thick.
3. Specimen holder mass: 15±2 g
4. Draught shield: Φ75mm×50mm
5. Thermocouple: insulated nickel-chromium sheathed Φ0.3mm
6. Voltage stabilizer: 1.5KVA, accuracy of output voltage within ±1%
7. Variable transformer:0~100V
8. Thermometer:0~1000±5%
9. Timer:0~99h
10. Power: AC220V ± 10%, 50Hz, current ≤10A
11. Furnace temperature: 750±5℃
12. Furnace temperature drift: <2℃/10min
13. Heating power: 800-1000W, maximum power: 1.5KW
14. Gas source: gas or liquefied petroleum gas (if conditions permit, choose a better quality gas source)
15. Inside diameter of burner is Φ0.17mm, four Φ4mm air-conditioning hole. Flame height is easy to adjust.
Feature:
1. Using 16-bit high-precision microcomputer control board, with reasonable structure, stable performance, easy operation;
2. Windows XP operate system, LabVIEW style, perfect security mechanisms. During testing real-time display measurement results, and dynamically draw perfect curve, the data can be stored permanently and read and print output, you can print it directly;
3. PC+Labview software control;
4. Furnace: using steel-tube mold making, uniform thickness, durability, heat resistance temperature > 1600C, the temperature uniformity.
Structure:
1. The apparatus is made of combustion chamber and control chamber;
2. Combustion dimension: L700 * W400 * H850 (mm);
3. Combustion chamber and control chamber are made of high quality static-electronic steel plate, plastic-spray surface treatment and perfect appearance;
4. Internal parts are made of high quality stainless steel, and anti-rust.
