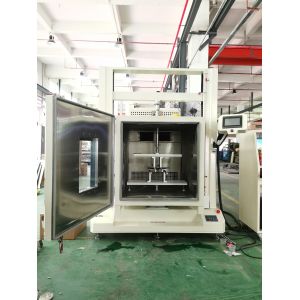

High Temperature Tensile Testing Machine HZ-1003C With Taiwan Delta Servo Motor 20kN

Name: High Temperature Tensile Testing Machine HZ1003C With Taiwan Delta Servo Motor 20kN
Brand: lixian
Price: 1 USD

Cheap High Temperature Tensile Testing Machine HZ-1003C With Taiwan Delta Servo Motor 20kN for sale

Brand Name : lixian

Model Number : HZ-1003C

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : negotiate

Delivery Time : 7 days

Packaging Details : wood

Tensile Strength Testeing machine : Tensile Strength

Tensile Strength Testeing instrument : for metal

Motor : Taiwan “Delta” servo motor and drive

Measuring accuracy : Tolerance ±1% / tolerance ±0.5%

Warranty : 1 Year

Usage : Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester

Standard : BS.EN.ASTM,DIN,ASTM,ASTM E8/A370/ISO 75001,ISO

accuracy : ±1%

control system : PLC

display : LCD

load capacity : 20kN

power supply : 220V/50Hz

stroke : 1000mm

type : Universal Testing Machine

Contact Now

High Temperature Tensile Testing Machine QC-506M2F-LWH HZ-1003C With Taiwan Delta Servo Motor 20kN Load Range

High temperature Tensile testing machine standard :QC-506M2F-LWH

High temperature Tensile testing machine HZ-1003C can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel and other mid-force mechanical test(20KN), such as tires, belt, shoes, plastic,film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

High temperature Tensile testing machine Specification

Model Number	HZ-1003C High temperature Tensile testing machine
Motor	Taiwan “Delta” servo motor and drive
Temperature range	-70~150°C,Room temperature~ 1000degree
Max. load	20KNelongation test instrument option
Accurate grade	0.5 grade
Effective measuring range	Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy	Tolerance ±1% / tolerance ±0.5%
Tester resolution	Max load 1/200000, constant resolution
Effective tensile space	400, 500, 600mm or requirement
Testing speed	From 0.001 to 500mm/min
Cooling system	Compression from France

High temperature Tensile testing machine Control System
Support for tensile, compression, shear, bending and other tests;
Adopt an open statement in the form of EXCEL, to support user-defined report format;
Print the query testing results flexibility, support for printing multiple samples, custom sorting print projects
Procedure supports hierarchical management levels (administrator, tester) user management rights;

High Temperature Tensile Testing Machine HZ-1003C With Taiwan Delta Servo Motor 20kN

High temperature Tensile testing machine UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.

High low temperature test machine HZ-1003C.pdf
